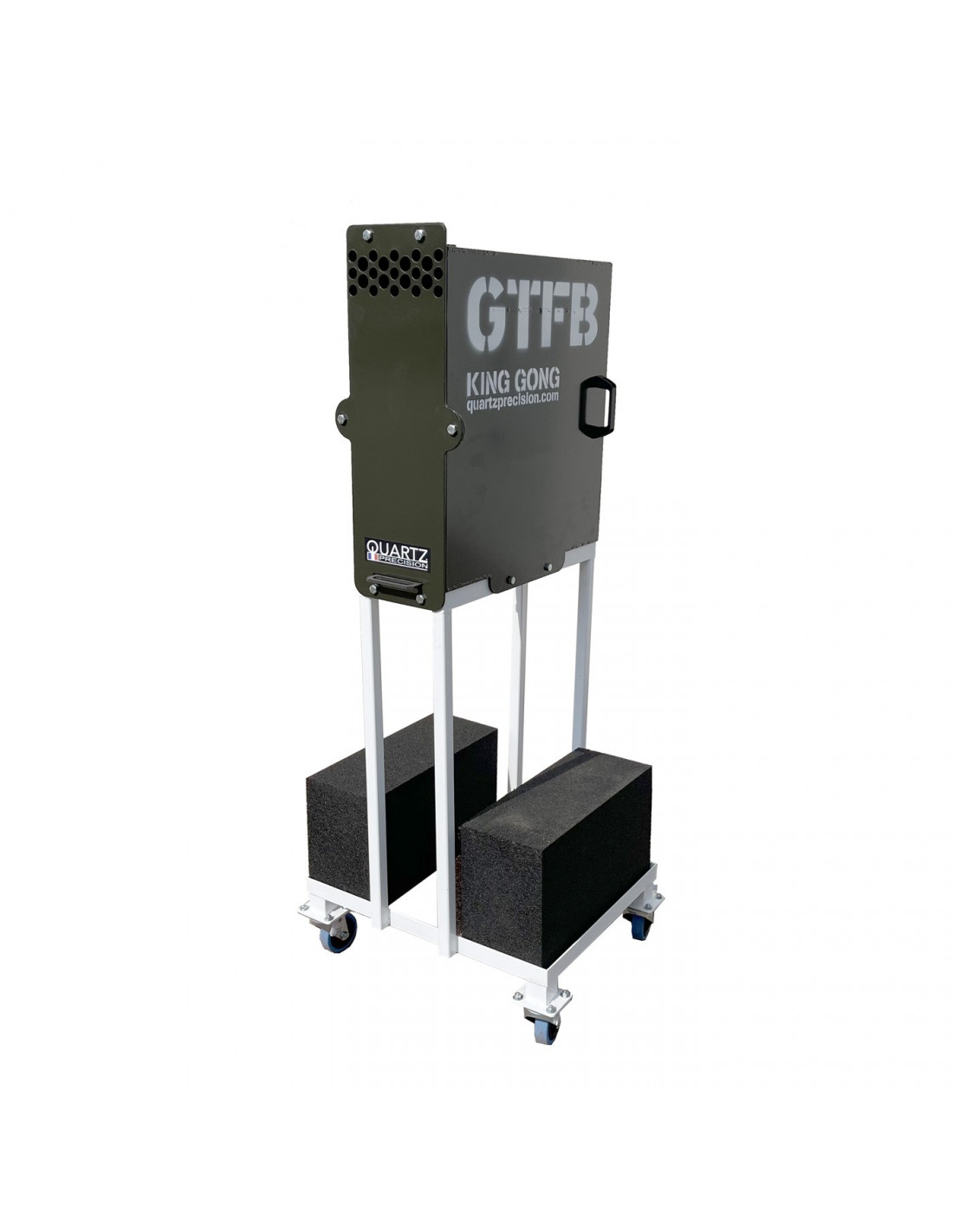

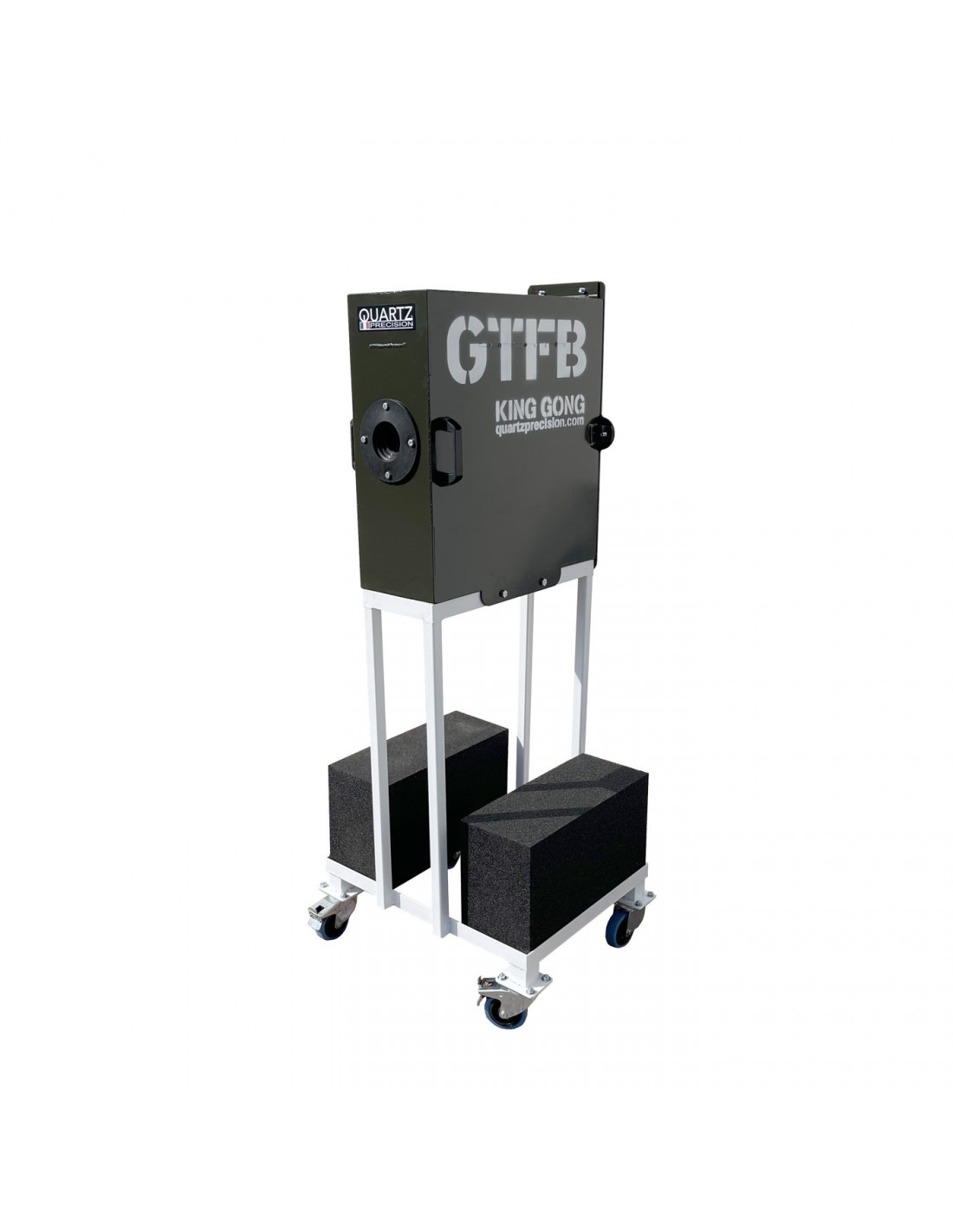

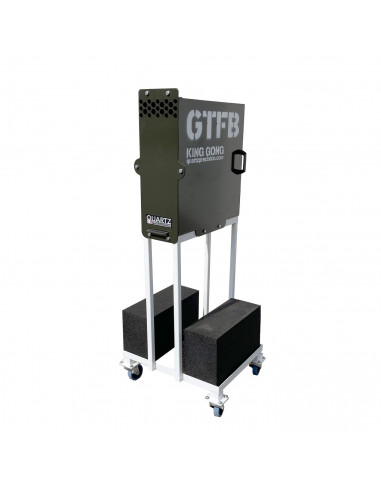

Bullet trap equipped with a solid rubber block made from resin-bonded recycled tyre granules. Supplied with three HEXBLOC RI shooting blocks, each measuring 500 × 300 × 200 mm, RI version (EN 13501-1 fire classification: Euroclass Dfl-s1; VOC rating: A+).

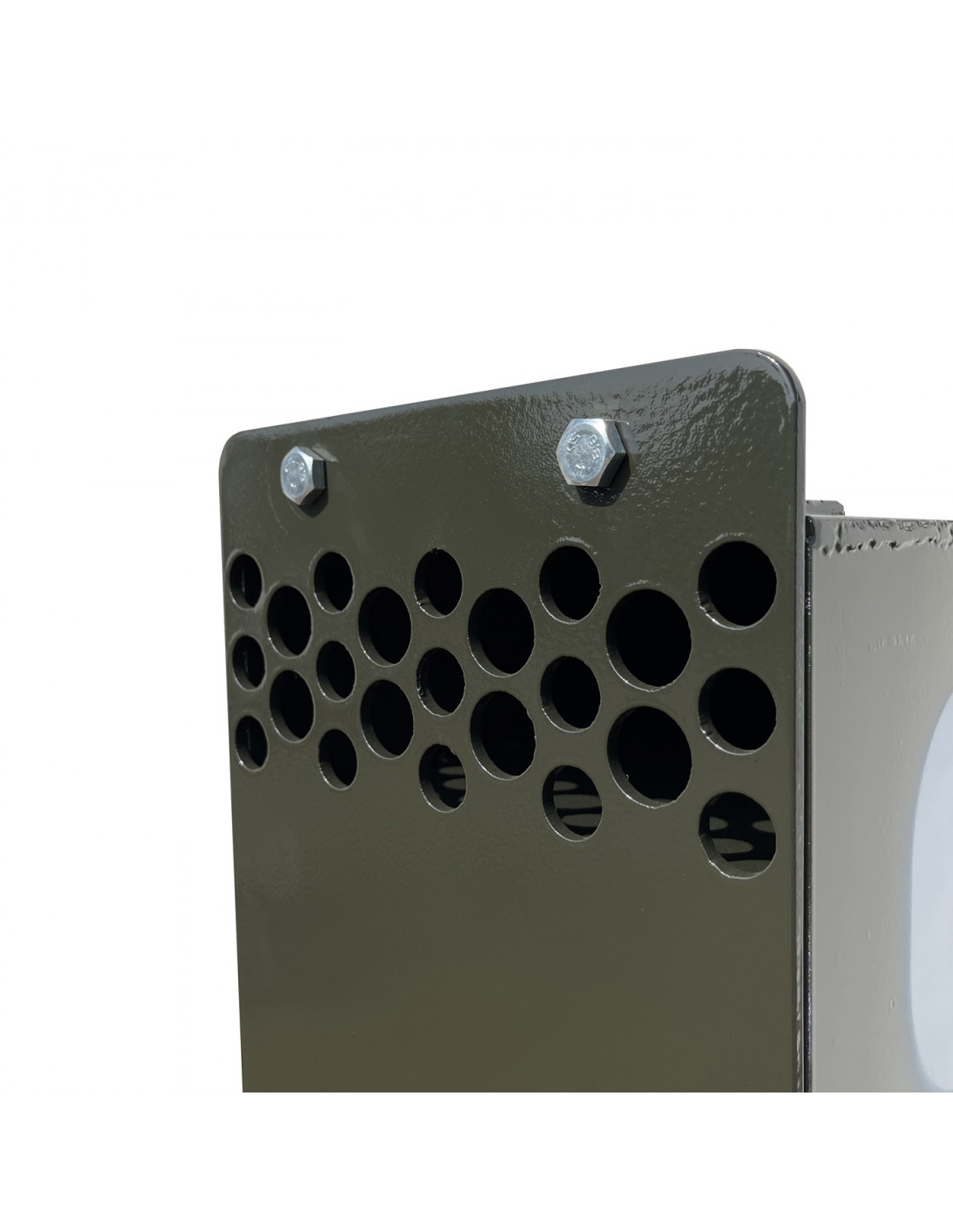

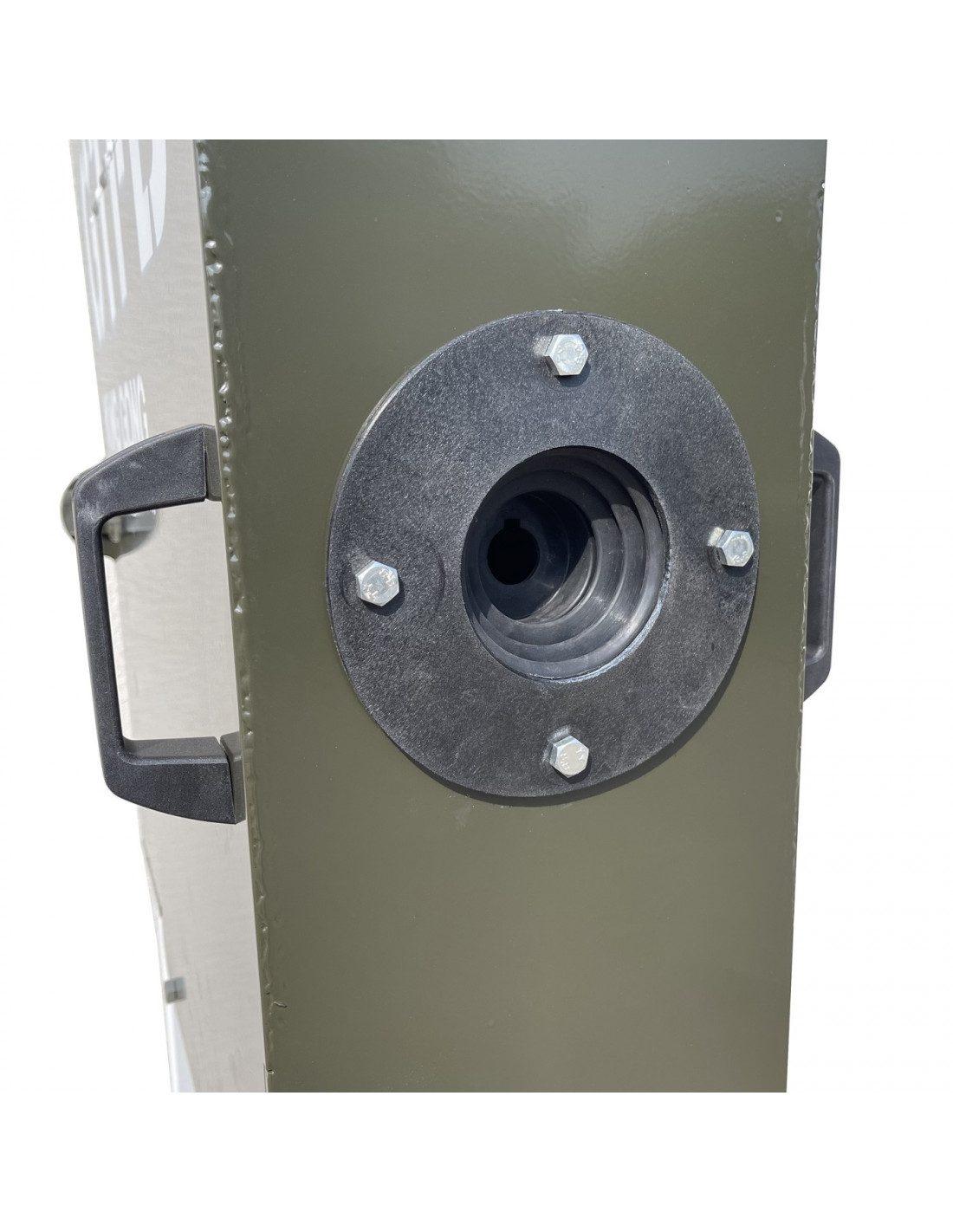

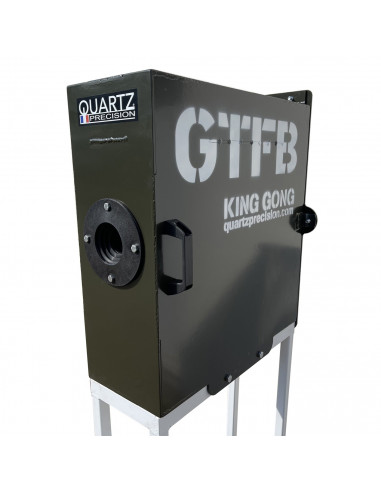

Internal vented system redirects the firing blast towards the rear of the enclosure. Firing opening with black HDPE edge protection and a rubber seal. Armoured rear plate, rated up to 7.62 mm NATO, protects against perforation if the shooting block is heavily worn.

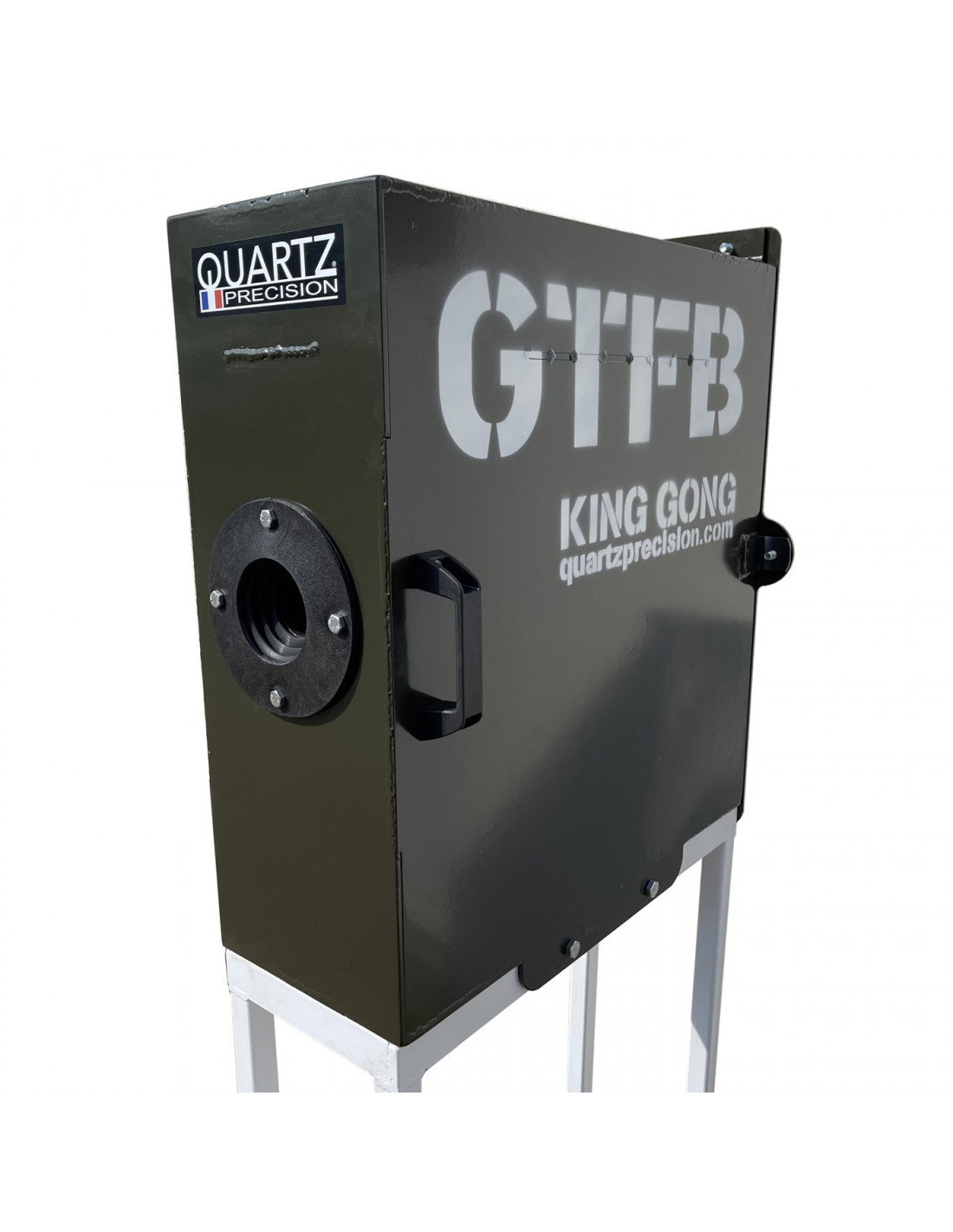

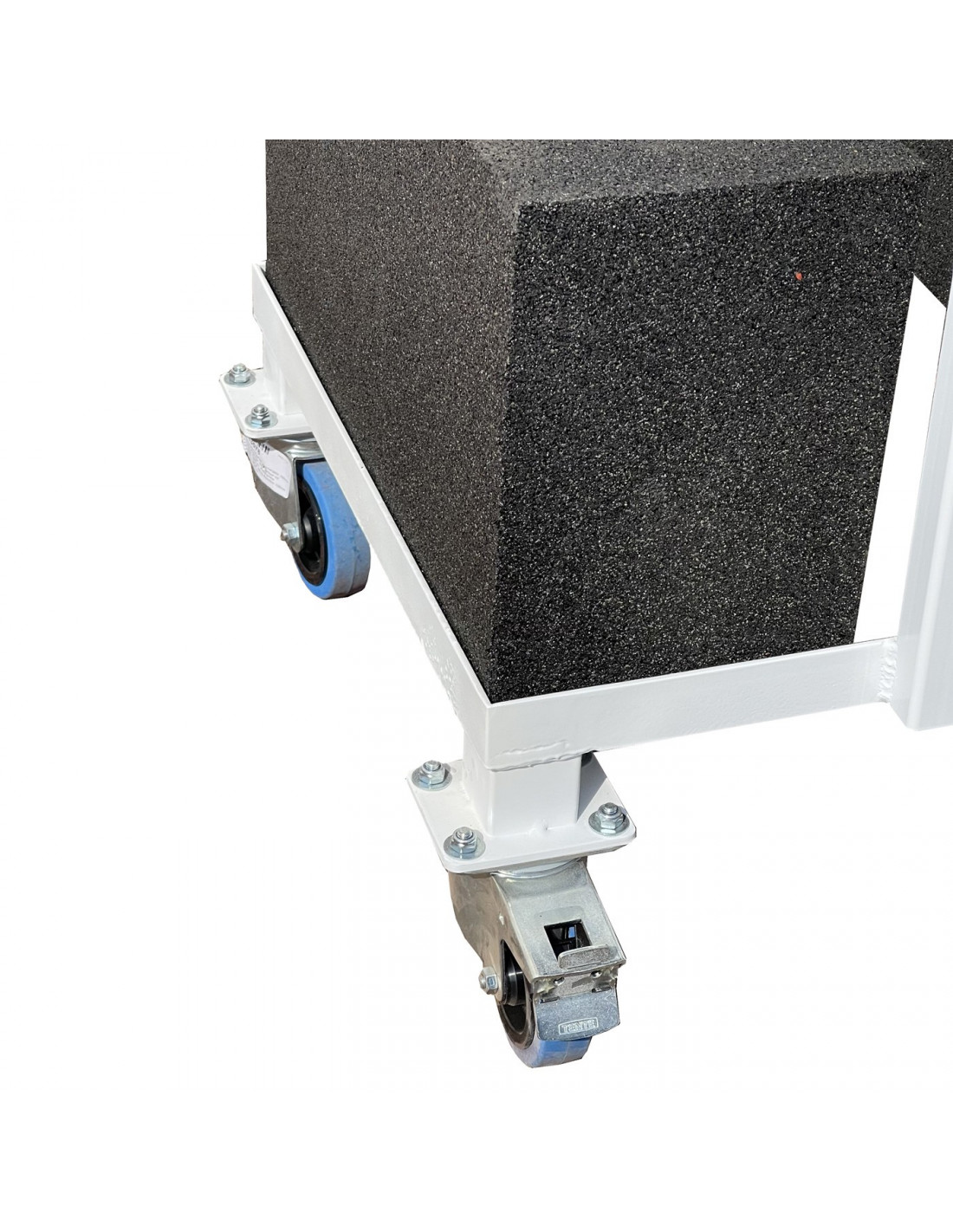

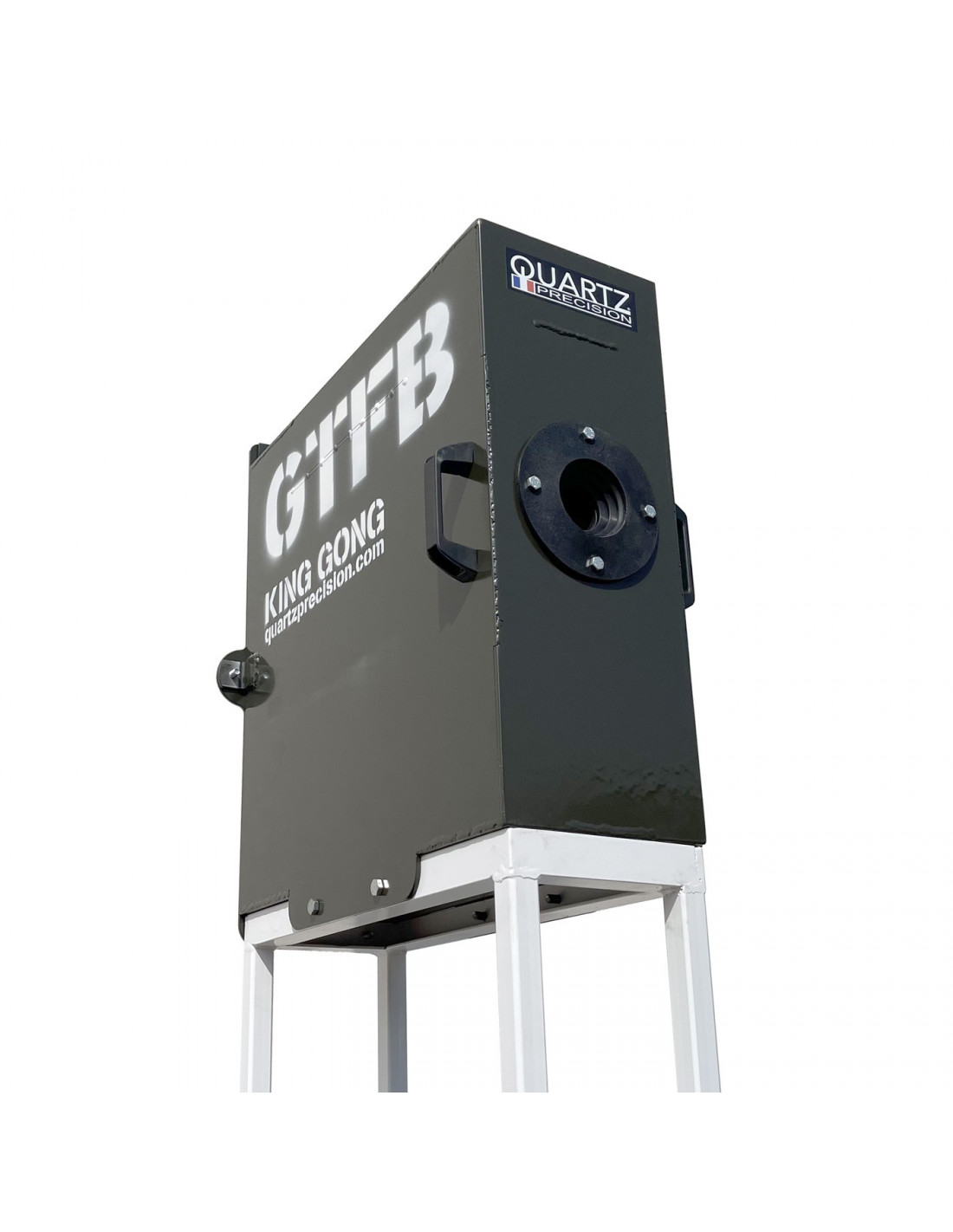

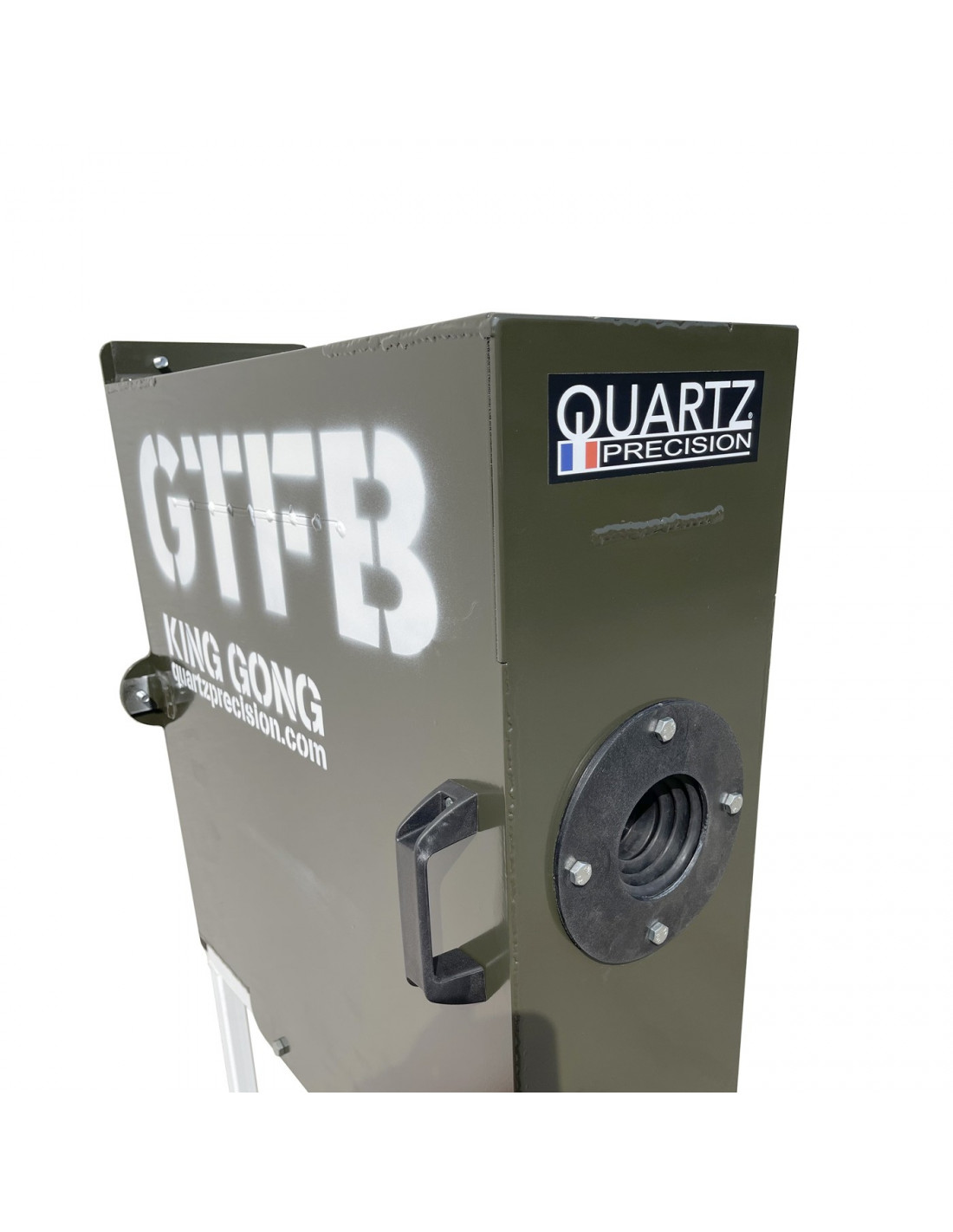

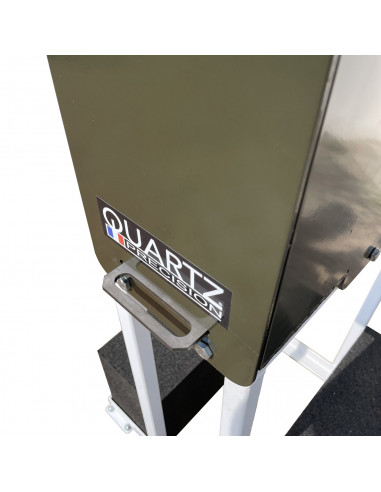

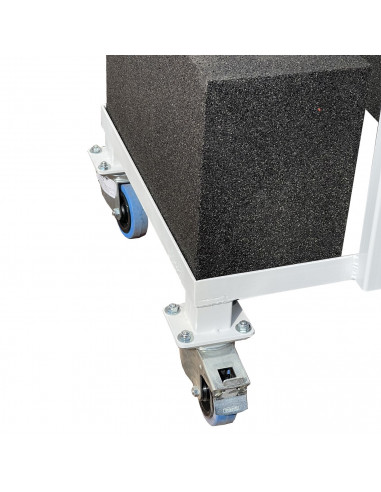

Enclosure made from 5 mm ballistic steel, with an 8 mm rear plate. Khaki epoxy powder-coated finish. Removable internal block on a sliding rack, replaceable and reversible for more even use. Firing-axis height: 1,300 mm. Hot-dip galvanised steel frame. Four swivel castors, with brakes on the two front castors. Operating-instruction plate included.
Supplied with the required personal protective equipment: ballistic face protection, gloves and hearing protection.
