KING GONG STRAP KIT - Strap Hanging Kit for 1 Gong Target

Ready-to-fit gong target suspension

The KING GONG STRAP KIT contains the components needed to hang one gong target with two mounting points from a timber beam. Both straps are pre-cut to 75 cm and pre-punched for M10 bolts, so no cutting or punching is required for this configuration.

A flexible alternative to chains

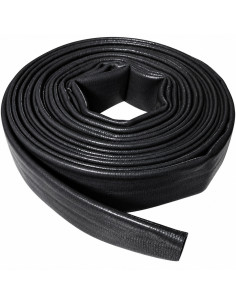

The double-layer, fibre-reinforced PVC STRAP FLEX 40 straps provide an alternative to hanging chains prone to breaking after accidental hits. Each strap is approximately 40 mm wide and 3 mm thick. The straps can withstand several accidental hits without breaking; durability depends on the impacts sustained and their condition.

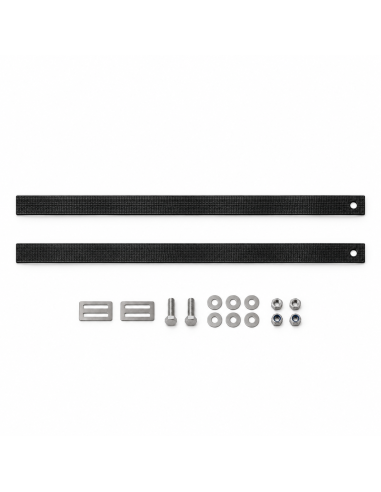

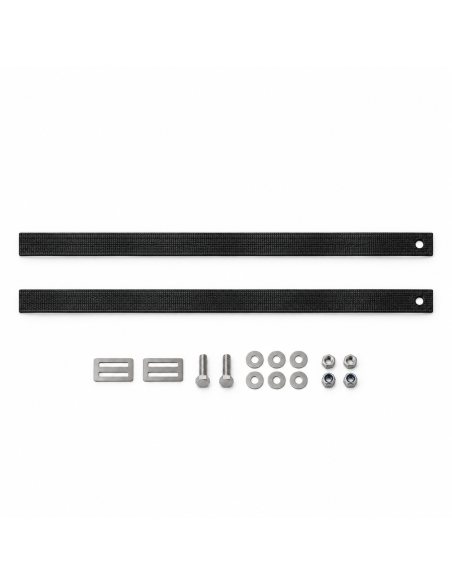

Kit contents for one target

• 2 pre-cut, pre-punched 75 cm reinforced PVC straps, using reference KG-SF40-10M;

• 2 STRAP LOCK 45 stainless steel strap slides, 3 mm thick, from reference KG-SL45-10, to secure the straps around the timber beam;

• 2 M10 × 40 mm bolts;

• 6 M10 large washers;

• 2 M10 nuts;

• 2 M10 lock nuts.

Installation and maintenance

The slides secure the straps around the beam, while the M10 hardware connects them to the gong mounting points. Check that the target accepts M10 hardware and that 75 cm straps suit your installation. Inspect straps and fasteners before use and replace damaged components.

Replacement components are available separately: KG-SF40-10M strap, KG-SL45-10 slides and KG-SGMS hardware. The KG-ST10MM hollow punch is available separately for preparing other strap lengths.

Supplied for hanging one gong only. Target, timber beam and hollow punch not included.
